RDP Proxy – Citrix Gateway

Last Modified: Apr 16, 2021 @ 2:23 pm

This article applies to Citrix Gateway 13.0, Citrix Gateway 12.1, and NetScaler Gateway 12.0. Citrix ADC is the new name for NetScaler. Citrix Gateway is the new name for NetScaler Gateway.


💡 = Recently Updated

Change Log

RDP Proxy Overview

Citrix ADC supports RDP Proxy through Citrix Gateway. No VPN required. RDP can connect through Citrix Gateway on port 443.

There are several ways of launching RDP sessions through Citrix Gateway RDP Proxy:

  • Bookmarks on the Clientless Access portal page.
    • Bookmarks can be defined by the administrator.
    • Or users can add their own RDP bookmarks.
  • After logging in, change the URL in the browser to /rdpproxy/MyRDPServer. MyRDPServer can be IP or DNS.
  • In the RfWebUI Portal Theme, the Bookmark link lets users enter an RDP address, and click Go.



Here are some requirements for RDP Proxy:

  • Citrix ADC Advanced Edition or Premium Edition.
    • Citrix Gateway Enterprise VPX is not sufficient. It must be a full ADC license.
  • Citrix Gateway Universal Licenses for each user.
    • Most Citrix ADC Editions come with built-in Gateway Universal licenses: Citrix ADC Standard Edition = 500 licenses, Citrix ADC Advanced Edition = 1000 licenses, and Citrix ADC Premium Edition = unlimited licenses. See Feature Licensing in the Gateway Tweaks post.
  • TCP 443 opened to the Citrix Gateway Virtual Server.
  • TCP 3389 opened from the Citrix ADC SNIP to the RDP Servers.


Enable RDP Proxy Feature

  1. Go to System > Settings, and click Configure Advanced Features.
  2. In the left column, near the bottom, check the box for RDP Proxy and click OK.

Create RDP Server Profile

You do not need a RDP Server Profile if the machines you want to RDP to are not members of any RDS Connection Broker Infrastructure. Skip to the next section to create the RDP Client Profile.

If you want Citrix Gateway to RDP Proxy to a RDSH machine that is part of an RDS Connection Broker Infrastructure (aka RDS Collection, or member of RDS Broker Farm), then you’ll need the following:

  • Citrix ADC 12.1 or newer
    • NetScaler 12.0 does not support RDSH machines connected to RDS Connection Broker.
  • RDP Server Profile to enable the 3389 listener on your Gateway Virtual Server.

RDP connections through Citrix Gateway to RDP Connection Broker members requires that the Remote Desktop Session Hosts are configured to disable the GPO setting Use IP Address Redirection located in a GPO at Computer Configuration | Policies | Administrative Templates | Windows Components | Remote Desktop Services | Remote Desktop Session Host | RD Connection Broker. Disable this setting on the RDSH machines, not the Connection Broker machine. Disabling this setting enables token-based redirection instead of IP-based redirection, which is required by RDP Proxy in Citrix Gateway.

To create the RDP Session Profile on Citrix ADC:

  1. Expand Citrix Gateway, expand Policies, and click RDP.
  2. On the right, on the Server Profiles tab, click Add.
  3. In the Create RDP Server Profile window:
    1. Give the RDP Server Profile a name.
    2. If you don’t enter an RDP IP, then it will use the Gateway VIP.
    3. If you don’t enter a RDP Port, then it will default to 3389. This is an additional port that must be opened on the firewall.
    4. Enter a new Pre Shared Key.
    5. Change RDP Redirection to ENABLE. This is a new feature in ADC 12.1. This setting enables RDS Infrastructure to work.
  4. Click Create.

Create RDP Proxy Client Profile

All RDP Proxy configurations need an RDP Client Profile.

  1. Expand Citrix Gateway, expand Policies, and click RDP.
  2. On the right, switch to the Client Profiles tab, and click Add.

    1. Give the RDP Client Profile a name, and configure the client device mappings as desired. Scroll down.
    2. For the RDP Cookie Validity field, Citrix CTX233207 says that after a HA failover, RDP Proxy session will not reconnect if the cookie has expired.
    3. If you are running ADC 12.1 or newer and need to allow RDP connections to RDS Infrastructure member machines, then enter the same Pre Shared Key that you configured in the RDP Server Profile. If you don’t need to RDP to any member of any RDS Infrastructure, then you don’t need these settings.
      • Also, for RDP Host, enter the FQDN of the Gateway Virtual Server. This is only needed for RDP Server Profiles.
    4. Click Create.

Create RDP Bookmarks

You can create administrator-defined bookmarks that can be assigned to everybody or can be assigned to specific Active Directory groups. Another option is to let each user create their own bookmarks.

  1. On the left, expand Citrix Gateway, expand Resources, and click Bookmarks.

  2. On the right, click Add.

    1. Give the Bookmark a name.
    2. For the URL, enter rdp://MyRDPServer using IP or DNS (FQDN).
      • For RDS Collections, enter the address of any RDP member of the collection. The RDP server will ask the Connection Broker to load balance across the Collection and then redirect the RDP connection to the least busy RDP server in the Collection.
      • For RemoteApp, see Citrix Discussions. Example URL:
        rdp://rdshost1.comtoso.com?alternate shell:s:||win32calc&remoteapplicationprogram:s:||win32calc&remoteapplicationname:s:Calculator&remoteapplicationcmdline:s:&remoteapplicationmode:i:1
    3. Check the box next to Use Citrix Gateway As a Reverse Proxy,
  3. Click Create.
  4. Create more bookmarks as desired.

Edit a Session Profile

  1. Create or edit a Gateway Session Profile (Session Profiles tab).
  2. On the Security tab, set Default Authorization Action to ALLOW. Or you can use Authorization policies to control access.

  3. On the Remote Desktop tab, check Override Global, and select the RDP Client Profile you created earlier.
  4. On the Client Experience tab, set Clientless Access to On. This enables the clientless access portal that can display administrator-defined bookmarks and lets users add their own bookmarks.
  5. On the Client Experience tab of the Session Profile, decide if you want Single Sign-on to Web Applications or not. It’s required for RDS Collections but optional for RDP machines that are not members of an RDS Infrastructure. If not checked then the user will be prompted to login again when launching an RDP session.
  6. On the Published Applications tab, make sure ICA Proxy is OFF so the clientless portal is displayed.
  7. Click OK when done.

Edit Citrix Gateway Virtual Server

  1. Edit or Create your Gateway Virtual Server.

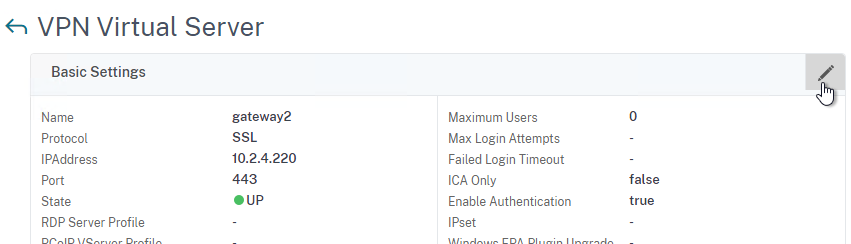

  2. In the Basic Settings section, click the pencil icon on the top right to edit it.
  3. Click More to show more settings.

    1. If the machines you are RDPing to are not members of an RDS Collection, then don’t configure RDP Server Profile. With no RDP Server Profile configured the RDP connections will be 443 to the Gateway. If you instead configure an RDP Server Profile then the RDP Connections will be 3389 or whatever port number you put in the RDP Server Profile.
    2. If you want to allow RDP to RDS Collection members, then select the RDP Server Profile that you created earlier. The RDP Server Profile enables port 3389 on the Gateway VIP. If you don’t select a RDP Server Profile, then RDP is proxied through 443 on the Gateway, but this won’t work for RDS Collection members.
    3. Scroll down. Make sure ICA Only is not checked. This means you’ll need Citrix Gateway Universal licenses for each user that connects through this Gateway.
    4. Click OK to close the Basic Settings section.
  4. Bind a certificate.
  5. Bind authentication policies.
  6. In the Policies section, bind the Session Policy that has the RDP Client Profile configured. Be mindful of policy priority.

  7. You can bind RDP Bookmarks to either the Citrix Gateway Virtual Server, or to a AAA group. To bind to the Citrix Gateway Virtual Server, on the right, in the Advanced Settings section, click Published Applications.
  8. On the left, in the Published Applications section, click where it says No Url.
  9. Bind your Bookmarks.
  10. While editing your Gateway vServer, you can also set the Portal Theme to RfWebUI. This is strongly recommended for the clientless access portal that displays the RDP bookmarks.

Configure DNS

  1. If you want to connect to RDP servers using DNS, make sure DNS servers are configured on the appliance (Traffic Management > DNS > Name Servers).
  2. If you want to use the short names instead of FQDNs, add a DNS Suffix (Traffic Management > DNS > DNS Suffix).

Use RDP Proxy

  1. Connect to your Citrix Gateway and login.
  2. If you configured Bookmarks, if RfWebUI theme, on the Apps tab, click Web and SaaS Apps.

    1. If X1 theme, the bookmarks are on the Web Apps page.
  3. If RfWebUI theme, you can click Details to mark the Bookmark as a Favorite.

  4. Or you can change the address bar to /rdpproxy/MyRDPServer. You can enter an IP address (e.g. rdpproxy/ or a DNS name (/rdpproxy/myserver).
  5. If you edit the downloaded .rdp file, notice that it’s connecting on port 443.
  6. Then open the downloaded .rdp file.
  7. You can view the currently connected RDP users by going to Citrix Gateway > Policies > RDP, and on the right is the Connections tab.

Personal Bookmarks

  1. If using the RfWebUI theme, another way to launch RDP sessions is to click the Bookmark link, enter a destination DNS/IP, check the box next to RDP Link, and click Go.
  2. You can also give the Bookmark a name and Save it.

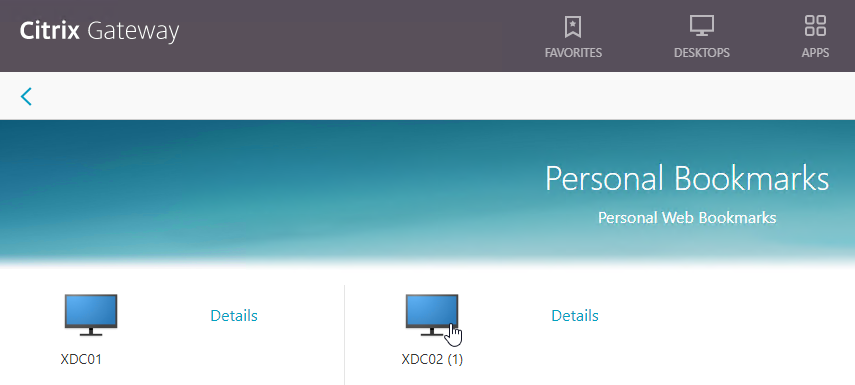

  3. Then access the saved bookmark from Apps > Personal Bookmarks.

  4. Personal bookmarks are stored in /var/vpn/bookmark on the appliance. You might want to back these up and replicate them to other Gateway appliances participating in GSLB. See NetScaler 11.1 Personal Bookmarks at Citrix Discussions.
  5. The X1 theme has an Add button on the Web Apps page.
  6. But there is no Go button. Instead, you save the Bookmark and launch it from the list.
