Citrix SCOM Management Pack – NetScaler (1.17.93)

Last Modified: Nov 6, 2020 @ 7:12 am

40 Comments

Navigation

💡 = Recently Updated

Requirements

  • NetScaler Platinum Edition
  • NetScaler 9.3 or newer
  • System Center Operations Manager 2012 or newer

Citrix Blog Post SCOM NetScaler Management Pack Resource Consumption & Performance Overview:

  • For 14,000 NetScaler objects, extra 3 GB of RAM is needed on the SCOM monitoring agent. CPU is minimal.
  • For more than 14,000 NetScaler objects, the Agent started dropping data due to workflows.
  • Performance overview at Citrix Docs

NetScaler Pack

Full documentation at http://docs.citrix.com/en-us/scom-management-packs/netscaler/1-17.html.

Install Citrix NetScaler Pack

  1. On the System Center Operations Manager server, go to the downloaded Citrix SCOM Management Pack for NetScaler, and run Citrix_SCOM_Management_Pack_for_NetScaler.1.17.93exe.
  2. In the Welcome to the setup wizard for Citrix SCOM Management Pack for NetScaler page, click Next.
  3. In the View Relevant Product Configuration page, click Next.
  4. If you see a page indicating that an older version is already installed, click Next.
  5. In the License Agreement page, check the box next to I accept the terms, and click Next.
  6. In the Choose Destination Location page, click Next.
  7. In the Configure Post-Install Actions page, check the box next to Automatically import the Management Pack, and click Install.
  8. In the Completed the setup page, click Next.
  9. In the All post-install actions were successfully completed page, click Finish.

MP Agent Installation Account

Configure the MP Agent Installation Account as detailed for the XAXD Pack.

NetScaler Monitoring Account

On the NetScaler appliances, run the following commands to add a local account, and bind it to a restrictive cmdPolicy. Replace the password with a secure password. If you leave the password off the command, then NetScaler will prompt you.

add system cmdPolicy polNetScalerMonitoring ALLOW (^show\s+system\s+\S+)|(^show\s+system\s+\S+\s+.*)|(^show\s+configstatus)|(^show\s+configstatus\s+.*)|(^shell\s+nsconmsg\s+-K\s+\S+\s+.*)

add system user usrNetScalerMonitoring MyPassword

bind system user usrNetScalerMonitoring read-only 1

bind system user usrNetScalerMonitoring polNetScalerMonitoring 1

show system user usrNetScalerMonitoring

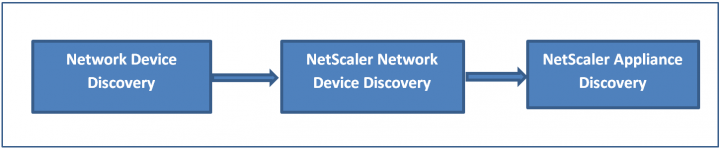

SCOM Device Discovery

  1. System Center Operations Manager uses SNMP to communicate with NetScaler. If Windows Firewall is enabled on the SCOM server, enable some Inbound and Outbound rules.
  2. Inbound Rule: Operations Manager Ping Response.
  3. Inbound Rule: Operations Manager SNMP Response.
  4. Inbound Rule: Operations Manager SNMP Trap Listener.
  5. Outbound Rule: Operations Manager Ping Request.
  6. Outbound Rule: Operations Manager SNMP Request.
  7. Make sure the NetScaler is configured with an SNMP community string with ALL permission at System > SNMP > Community.
  8. If you have SNMP Managers configured, then make sure SCOM is in the list.
  9. In SCOM Console, go to the Administration workspace, right-click, and click Discovery Wizard.
  10. Select Network devices, and click Next.
  11. In the General Properties page, give the discovery rule a name. Select a SCOM server, and resource pool to run the discovery rule. Then click Next.
  12. In the Discovery Method page, select Explicit discovery, and click Next.
  13. In the Default Accounts page, if you are using SNMPv2 (instead of SNMPv3) to connect to NetScaler, then you can add the community string now. Click Create Account.
  14. In the Introduction page, click Next.
  15. In the General Properties page, give the community string a display name, and click Next.
  16. In the Credentials page, enter the community string, and click Create.
  17. Then click Next.
  18. In the Devices page, click Add.
  19. Enter the hostname of the device.
  20. Select the SNMP version.
  21. If SNMPv2, select the community string. If SNMPv3, you can add the user account now.
  22. Click OK when done.
  23. Add more devices. Then click Next.
  24. In the Schedule Discovery page, select how often you want this rule to run, and click Next.
  25. In the Summary page, click Create.
  26. Click Yes to distribute the accounts.
  27. In the Completion page, click Close. The rule will run now.
  28. You  can also go to Administration > Network Management > Discovery Rules, and run the rule manually.
  29. And Network Devices Pending Management will show you discovery issues.
  30. The NetScaler appliance needs to be discovered and listed in the Network Devices node.

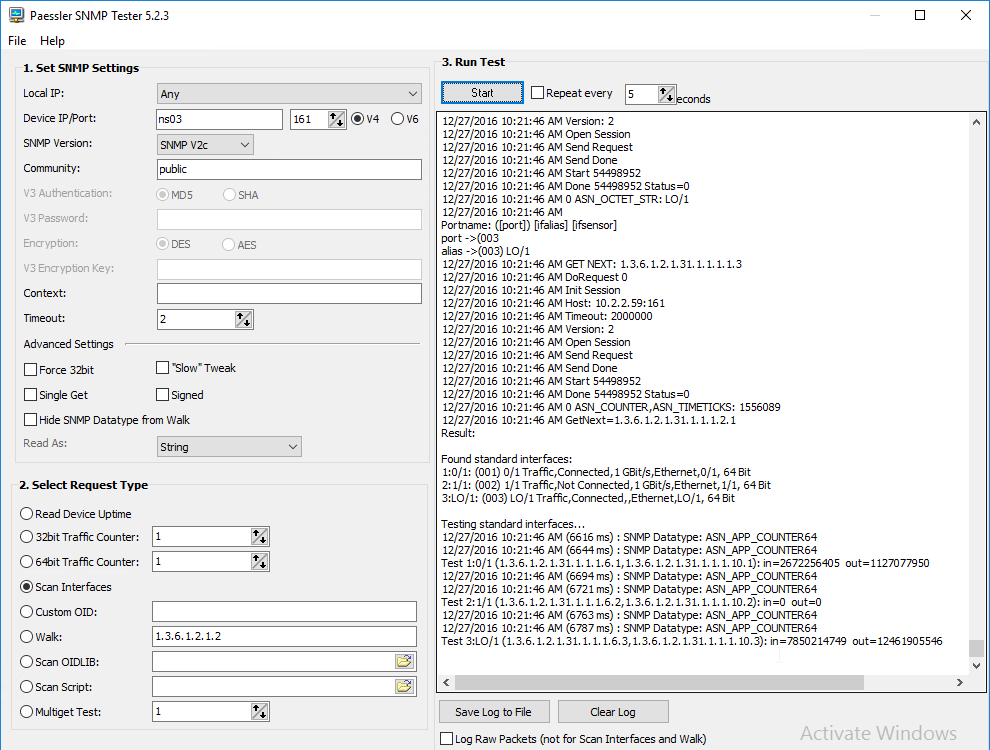

  31. You can use a SNMP Tester tool on the SCOM server to verify SNMP communication with NetScaler.  💡
  32. Also see CTX219765 Monitoring NetScaler with SCOM Management Packs – Understanding Discovery.  💡

Install Citrix NetScaler Agent

The Citrix SCOM Agent for NetScaler must be installed on the same SCOM server that is running the device discovery rule.

  1. If upgrading, uninstall the older Agent for NetScaler.
  2. On the SCOM servers that are running the SNMP Discovery Rule, go to \\scom01\CitrixMPShare\NetScaler MP, and run MPNSAgent.exe.
  3. In the Welcome to the setup wizard for Citrix SCOM Management Pack Agent for NetScaler page, click Next.
  4. If you see a page indicating that an older version is already installed, click Next.
  5. In the License Agreement page, check the box next to I accept the terms, and click Next.
  6. In the Destination Folder page, click Next.
  7. In the  Destination Data Folder page, click Install.
  8. In the Completed the setup wizard page, click Finish.

NetScaler Monitoring RunAs Account

  1. In SCOM console, go to Administration workspace, right-click, and click Create Run As Account.
  2. In the Introduction page, click Next.
  3. In the General Properties page, change the account type to Basic Authentication.
  4. Give the account a display name and click Next.
  5. In the Credentials page, enter the credentials of the local monitoring account on the NetScalers, and click Next.
  6. In the Distribution Security page, best practice is to select More secure. But you’ll need to manually specify every agent that should receive these credentials. Click Create.
  7. In the Completion page, click Close.
  8. In the Administration workspace, go to Run As > Profiles.
  9. Double-click Citrix NetScaler Appliance Action Account.
  10. In the Introduction page, click Next.
  11. In the General Properties page, click Next.
  12. In the Run As Accounts page, click Add.
  13. Select the previously created NetScaler monitoring account.
  14. Change the selection to A selected class, group, or object. Then click Select > Object.
  15. Search for the NetScaler appliances these credentials apply to, click Add, and then click OK.
  16. Then click OK.
  17. Click Save.
  18. In the Completion page, if the Run As account is configured for Secure Distribution then click the link to specify Agents to receive the credentials.

Use Management Pack

In the Monitoring workspace, under Citrix NetScaler, your appliance should eventually show up. These views should give you an inventory of the NetScaler configuration, current health status, etc.
